Guitar Wireless System PR-8/GT

Guitar Wireless System for Electric Bass and Guitar
Features
UHF 600-928MHz frequency range
PLL Synthesized, pre-set 100 selectable frequencies
Antenna diversity guarantee maximum range up to 262 feet (80m)
Pre-set 100 (10*10) frequency selectable, IR synchronization
High-fidelity sound quality, no loss compare to the cable
LCD display shows the RF level, AF level, channel and frequency
No need the bodypack transmitter, plug-in transmitter design

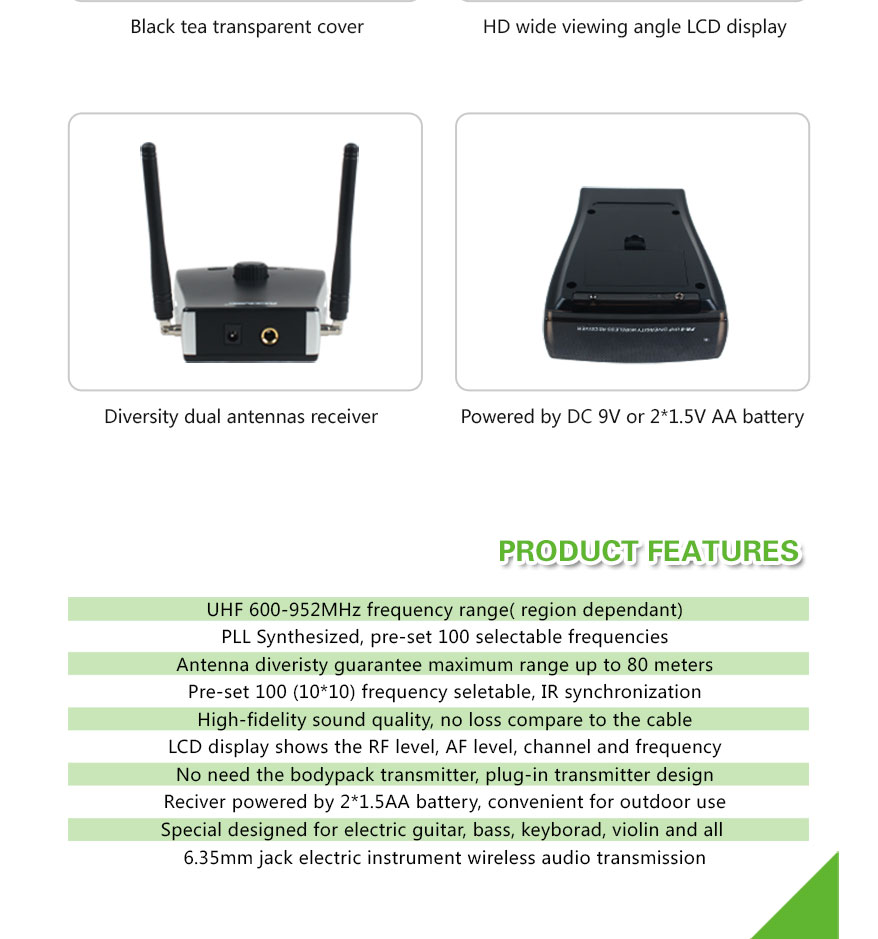

Receiver powered by 2*1.5AA battery, convenient for outdoor use
Designed for electric guitar, bass, keyboard, violin and all 6.35mm jack electric instruments.
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    Model: PR-8/GT
    Antenna Diversity
    Operating Range: 80m, 262ft

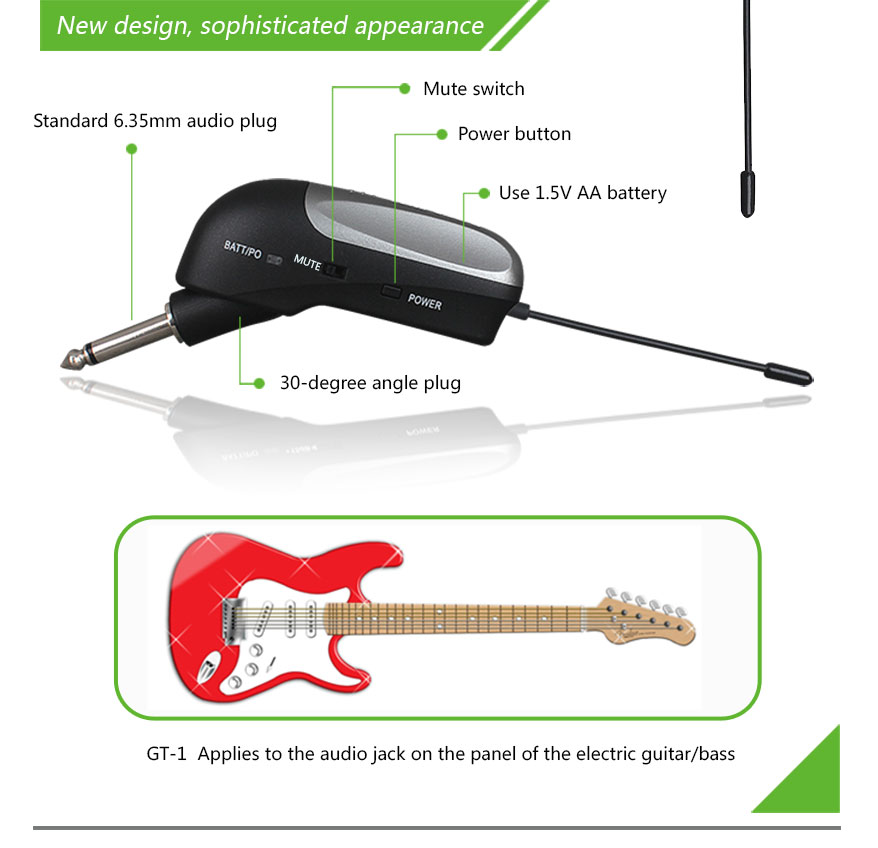

    PR-8/GT-1 (30°Angle)

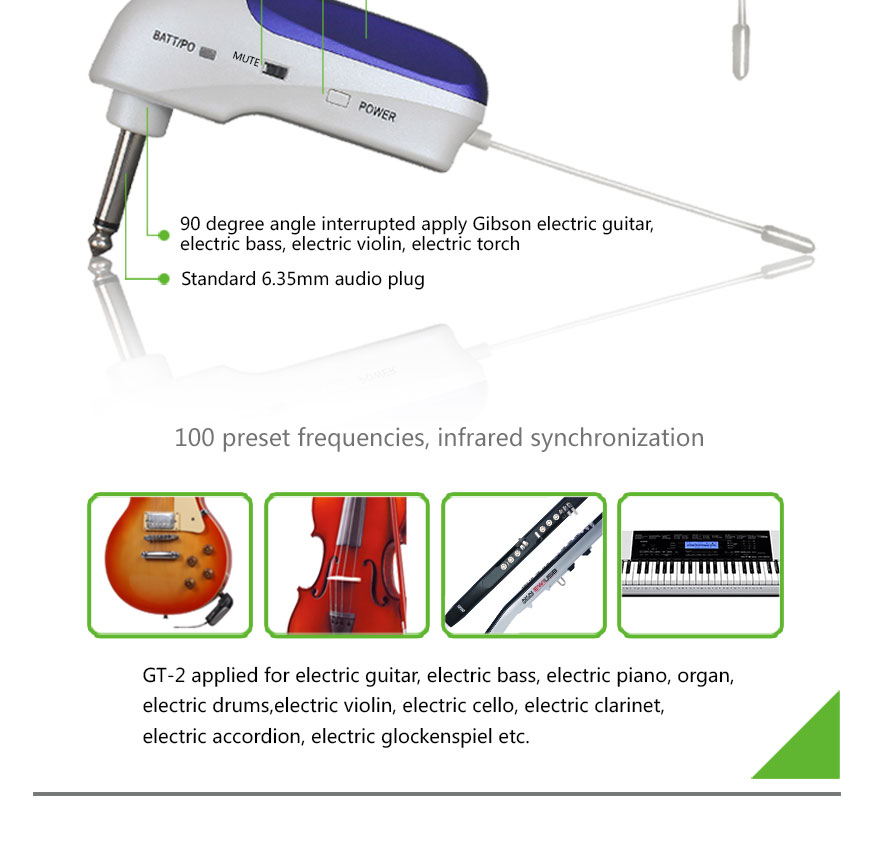

    PR-8/GT-2 (90°Angle)

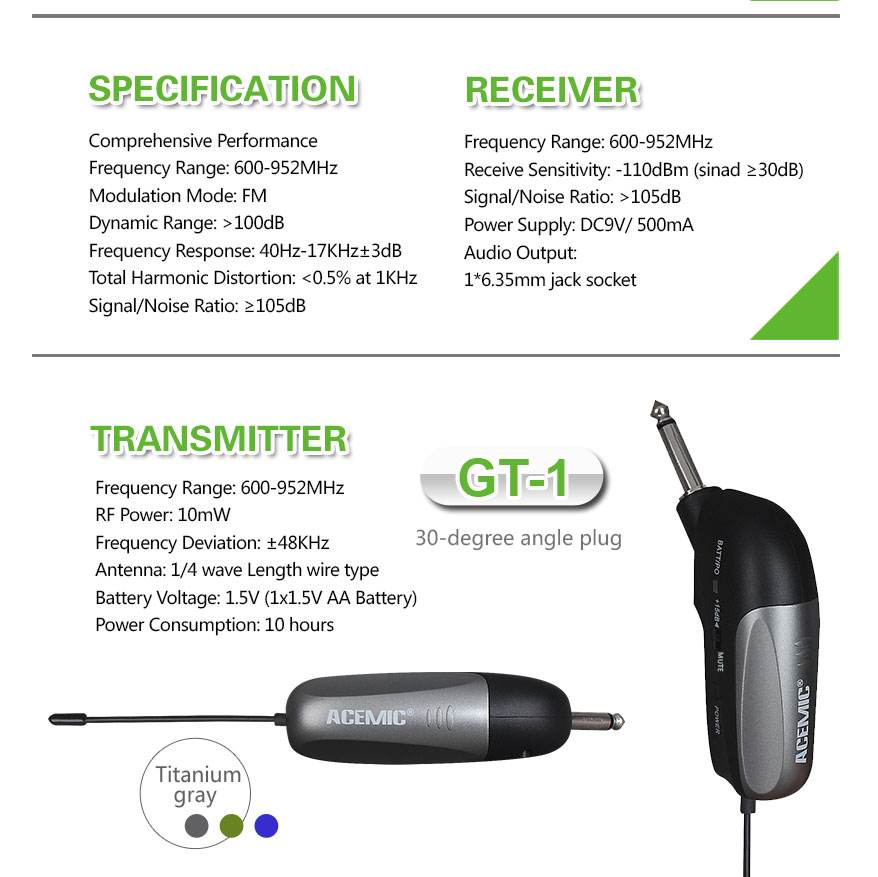

    Specifications
    Comprehensive Performance
    Frequency Range: UHF 660-690MHz (USA: 902-928MHz)
    Modulation Mode: FM
    Dynamic Range: >100dB
    Frequency Response: 40Hz-17KHz±3dB
    Total Harmonic Distortion: <0.5% at 1KHz
    Signal/Noise Ratio: ≥105dB

    Receiver
    Frequency Range: UHF 660-690MHz (USA: 902-928MHz)
    Receive Sensitivity: -110dBm (sinad ≥30dB)
    Signal/Noise Ratio: >105dB
    Power Supply: DC12V/ 500mA
    Audio Output: 1*XLR socket, 1*6.35mm jack socket

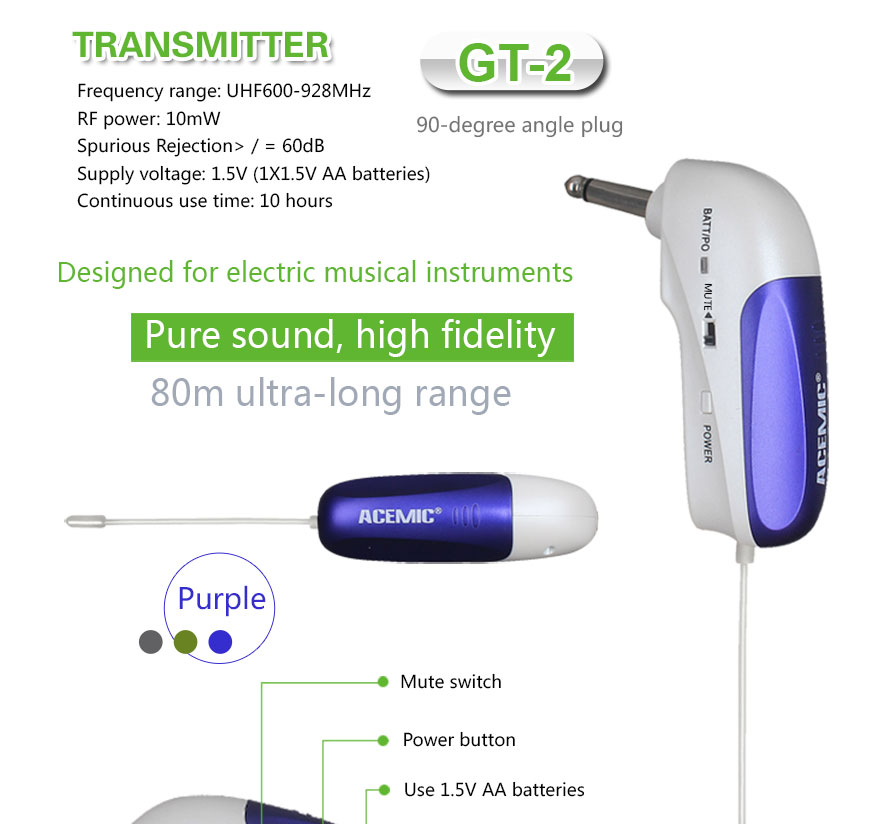

    Transmitter
    Frequency Range: UHF 660-690MHz (USA: 902-928MHz)
    RF Power: 10mW
    Frequency Deviation: ±48KHz
    Antenna: 1/4 wave Length wire type
    Battery Voltage: 1.5V (1x1.5V AA Battery)
    Power Consumption: 10 hours, battery-dependent

    About this item:
    • Ideal for the gigging guitar or bass player, the Acemic PR-8/GT guitar wireless system offers quality sound, dependable performance, and simple setup. It features a compact GT plug-in guitar transmitter with a two selectable connectors GT-1(30°Angle) and GT-2(90°Angle) that plugs into a variety of instrument jacks, including acoustic/electric and bass guitars, electric violins, and even accordions.
    • Designed to be an extension of your instrument, the bass guitar wireless system delivers a true wireless experience with no bodypack and no cable, allowing you to move freely around the stage during rehearsals or performances—interacting with other musicians and the audience.

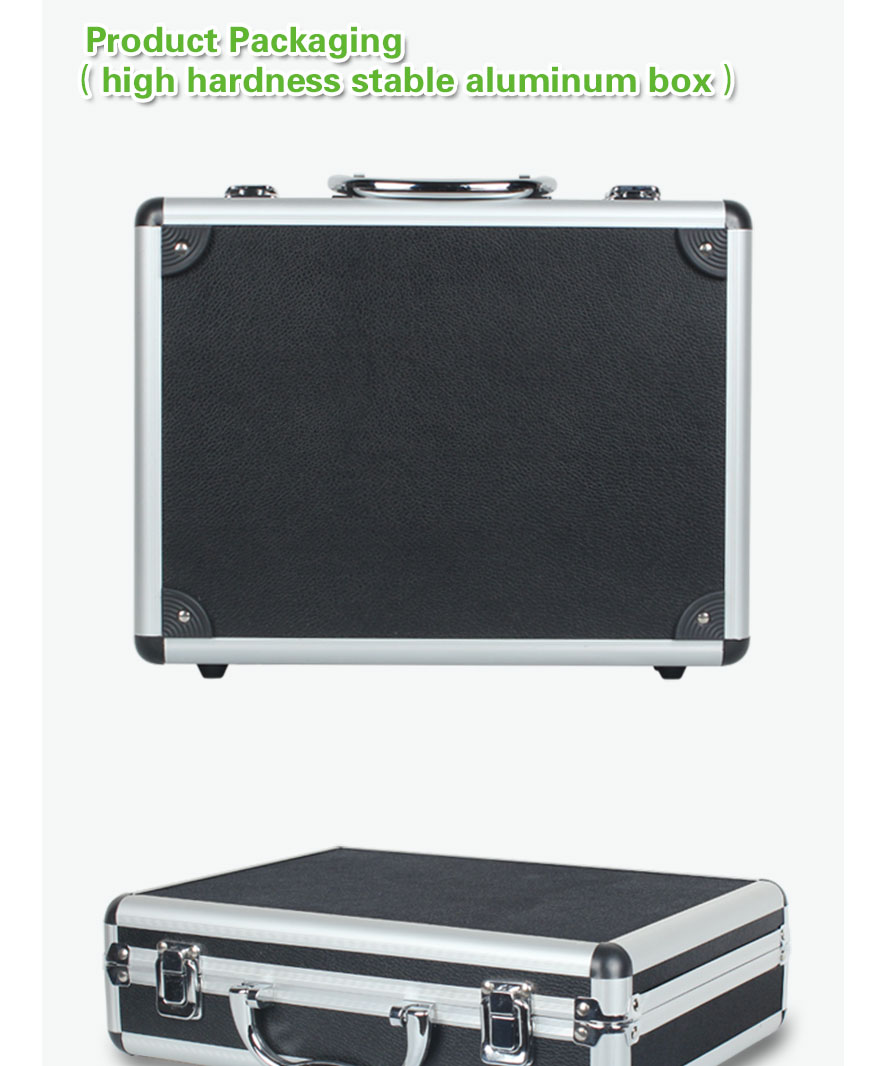

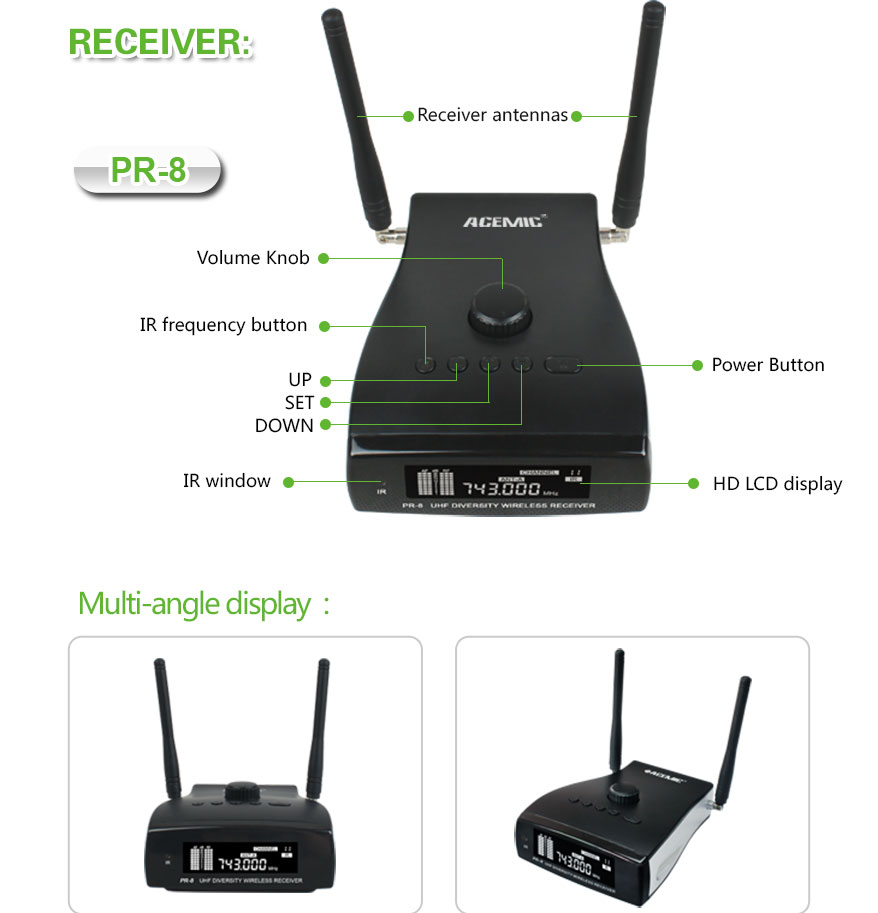

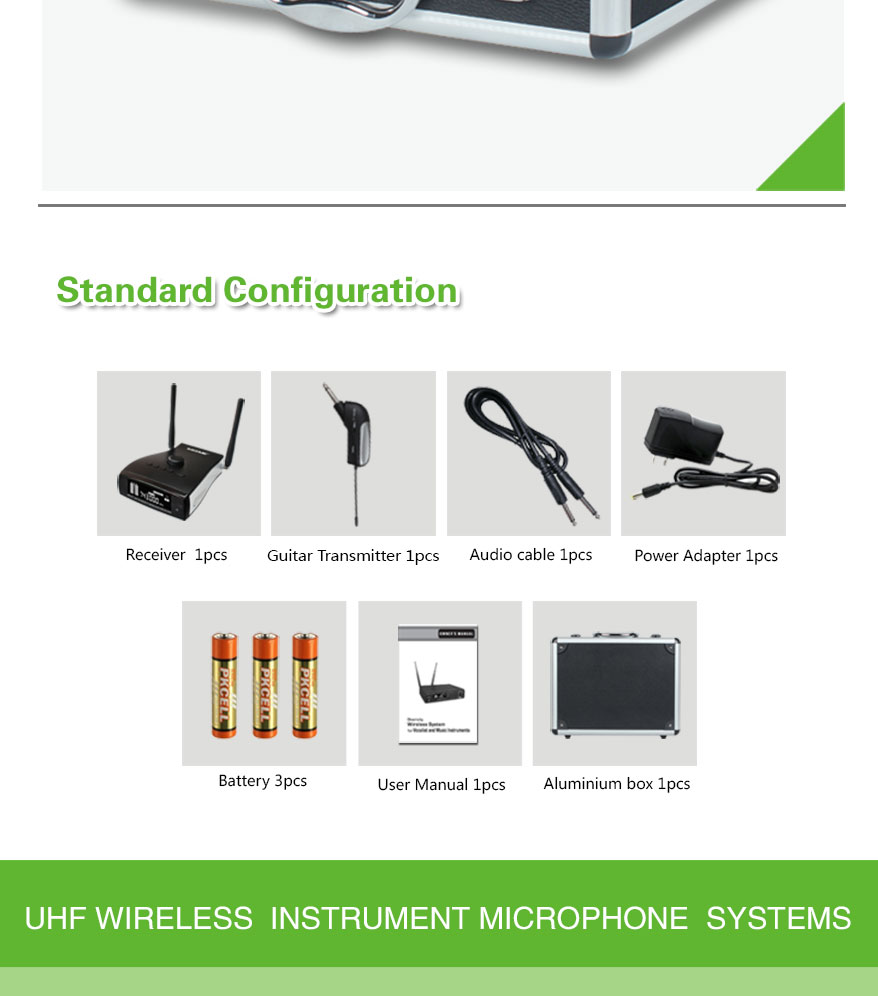

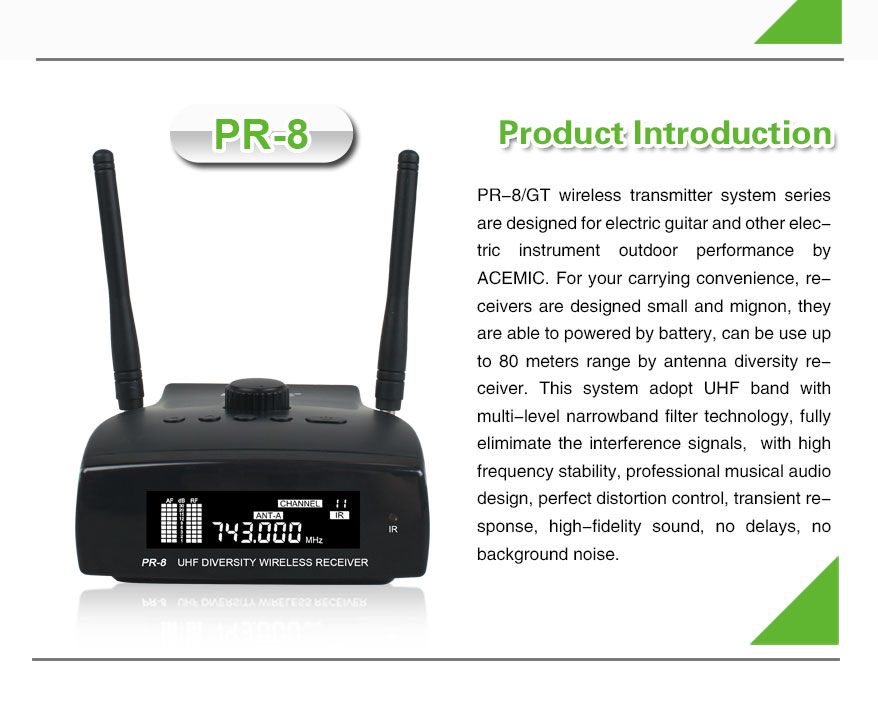

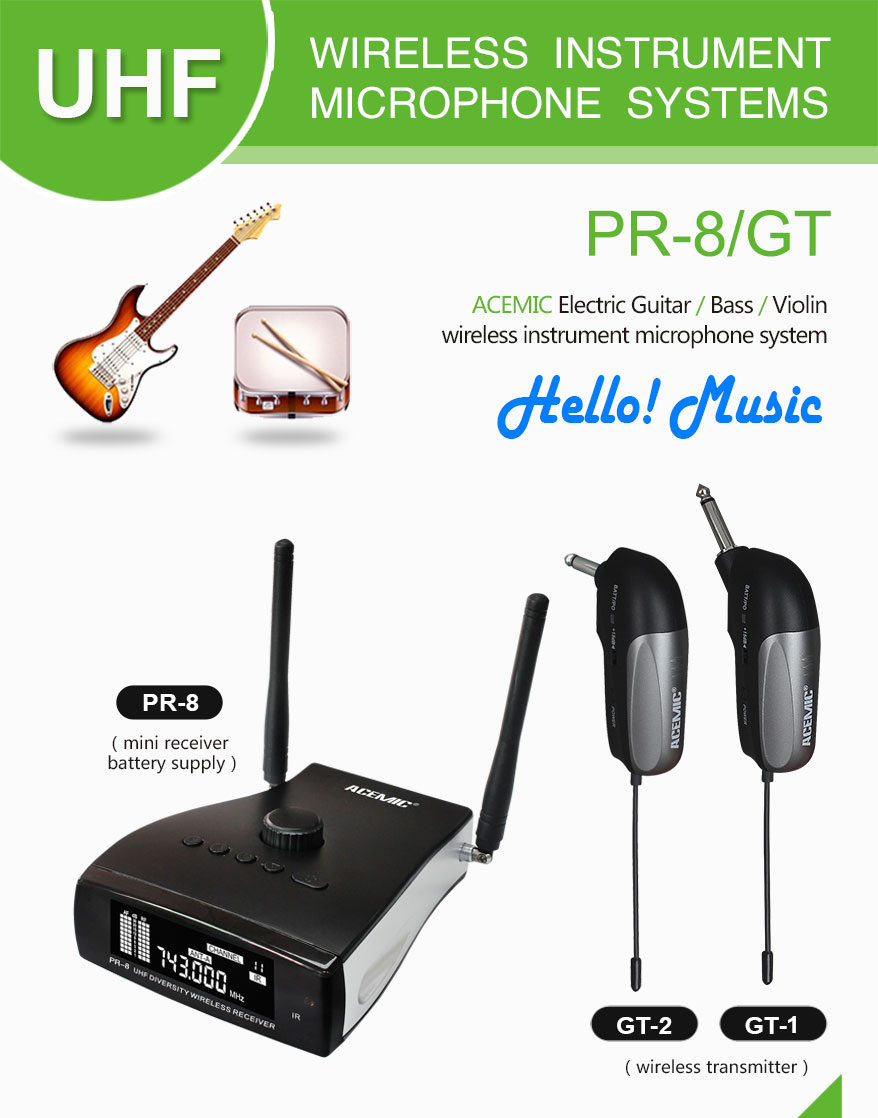

    • The PR-8/GT electric guitar wireless system includes a PR-8 receiver, which can be placed on top of your amp or securely rackmounted in a portable flight case using the necessary hardware. Two output connectors allow you to connect the receiver to an amplifier, sound system, or recording board.
    • The guitar wireless system GT transmitter provides up to 10 hours of continuous use on a single AA battery. The 262ft (80m) operating range offers ample coverage for small to mid-size venues. For gigs where several musicians use wireless, up to 8 systems can operate simultaneously in each frequency band.

    Versatile Plug-In Electric Guitar Wireless System Transmitter for Cable-Free Movement
    • The GT guitar wireless transmitter plugs directly into your instrument (no beltpack or cable required)
    • Designed with two selectable connectors , GT-1(30°Angle) and GT-2(90°Angle) , it can fit both Fender-style (Stratocaster) and Gibson-style electric guitar output jacks.
    • The audio mute switch is easily accessible for silent instrument swaps.
    • The dual-color LED indicator shows low battery, power output statuses.
    • One AA battery (available separately) provides up to 10 hours of use.
